Highway Noise Barrier Security Fencing System

Shanda supplies Highway Security Metal Mesh Fences. The fencing panels can be used together with noise barrier to form a composite barrier system. Ensuring sound proof and anti-climbing security. Highway Traffic Noise Proof Wind Resisting Security Barrier Fences have been exported to Europe, the U.S.A., the Middle East, Southeast Asia, Africa and some other parts in the world. The fence barriers are used as noise reduction sheets and traffic protection panels as well. We offer various metal mesh security fences, guardrails and noise barriers applied for highway construction.

According to security levels, we offer Metal Mesh Security Fence Panels ( Expanded Metal Mesh and Welded Mesh Panels ) Series and High Security Fencing Series ( 358 Mesh and Razor Wire ) Products. A variety of combination ways of solid noise barrier and mesh fencing can be achieved to meet different project requirements.

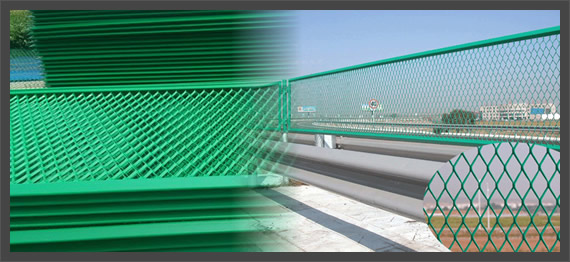

Anti-Dazzle Expanded Metal Security Highway and Express Way Fence Panels:

Expanded Metal Mesh Fence is widely used for highway driving at night to prevent light exposure. The metal fence has beautiful surface, stable structure and durable property for convenient transporting and installation. The mesh surfaces are anti-corrosion and anti-aging treated with zinc plating or powder coating suitable for long term uses. The flat high tensile strength metal mesh fences apply widely in industrial, agriculture, traffic line for protecting and barrier uses.

Features of Expanded Net Fencing: Flat panels, bright colors, easy installation and maintenance.

Material and Structure: Expanded metal fence panels, structured with steel tubes and posts.
Hole shape: Diamond, hexagonal shape holes
Surface treatment: Electro galvanzied steel, hot-dipped galvanzied, powder coated galvanized steel

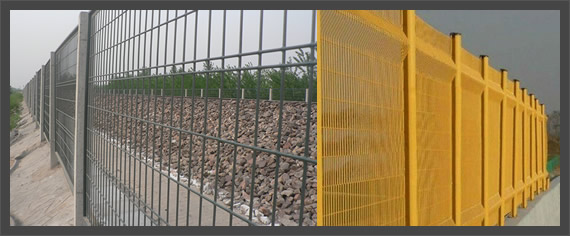

Security Welded Wire Mesh Fence:

Material: Low carbon steel wire.
Structure:Welded by low carbon steel wire, fixed by the linking accessories and steel pipe.
Advantages: Welded mesh fence offers high strength, firm structure, uniform square hole, rectangular hole, good vision, esay to install.
Application: Welded mesh fencing galvanized is widely used as protection fencing of highway, railway, airport, residential area, sea port, garden and various borders.

Fence length is 2.0m and 2.5m as standard
Feature: Aging-resistant, climate-resistant, safe, durable, firm.
Finishes: Electro galvanized,hot-dipped galvanized,pvc-coated in multi colors.

Fence panel specification
Panel size(height x length)	Wire dia	Mesh size	Surface treatment	Folds (or nofolds as equest)
1.03m	3mm-6mm	50x50mm, 50x75mm, 50x100mm, 50x150mm, 50x200mm, 55x100mm, 75x200mm, 60x150mm Or as your request	Electro GI+PVC coated Electro GI+ painting(Spraying) Hot-dipped GI only Hot-dipped GI +PVC coated or painting	2
1.23m				2
1.5m				2 or 3
1.53m				2 or 3
1.7m				3
1.73m				3
1.8m				3 or 4
1.93m				3 or 4
2.0m				4
2.03m				4
2.4m				4



The following fence posts are supplied:



Post Style	Post  Size
Rectangle Post	40*60*1.2mm
	40*60*1.5mm
	40*60*2mm
Square Post	40*40*1.2mm
	40*40*1.5mm
	60*60*2mm
	60*60*2.5mm
Peach post	50*70mm
	70*100mm

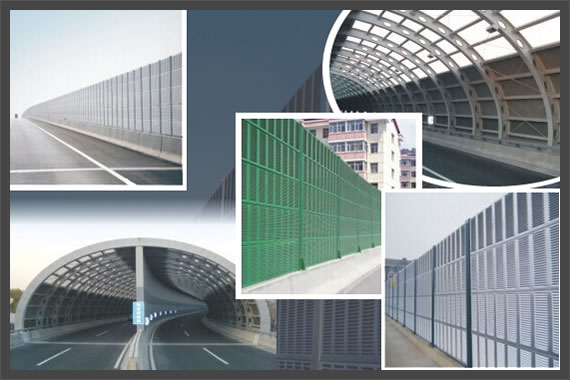

Composite Highway Sound Barrier & Security Fencing Syetems:



This compound panel fence barriers enjoy High strength, Light weight and non-deforming, good sound absorption effects, security fencing effects, both assembled easily to site installation.



Specifications
Panel thickness: 80mm, 100mm,120mm,
Size: 2500x500x80mm, 2500x500x100mm, etc
Metal plate thickness: 0.5-1.2mm

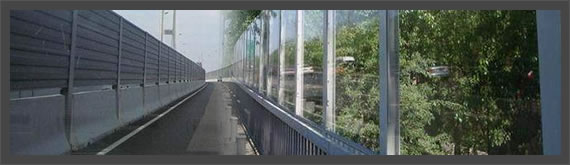

Noise Barriers
Material: outer: aluminum, inner:glass fiber.
Type: shutter, transparent, perforation.
Usage: railway, highway, road, downtown, building and so on.

The structure of sound barrier:
The internal fillings are water-repellent e-fiber glass or water-proof noise absorption film and centrifugal compound glass fiber; the back plate is made of gfrp extruding materials.







Highway noise barrier security fence system have different color and shape could be matched with each other, waterproof, heat resistance, anti-ultraviolet. The fencing barrier will not degrade its performance and quality for the change of rainwater's temperature.installation and maintenance, convenient update.
