Perforated Aluminum Acoustic Sheet for Highway Noise Barrier and Buildings

Perforated Aluminum Alloy Panels Used as Sound Barriers


Aluminum perforated panels are popularly used as highway sound barriers and architectural acoustical panels. Aluminum alloy panels have light weight and excellent property of anti-corrosion and alkaline resistance. Suitable for both indoor and outdoor uses. Fitted with fibers and foams, the sound reduction function of the metal panels works even better. Perforated in slots, louve, round hole, other patterns.

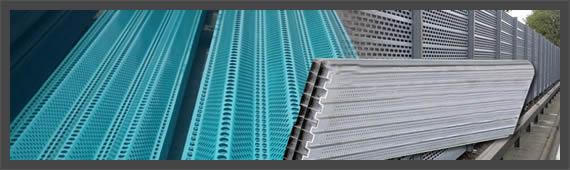

Aluminum Perforated Plates for Highway Noise Barrier

Typical Specification for Noise Barrier with Perforated Alu Materials:

1.Material Type: Aluminum –perforated, with fiber weathered proof
2.Durability: 20 years
3.Acoustic properties: minimum noise reduction coefficient of 0.35-0.6
4.Sound Reduction: 30-35 db.
5.Thickness: 10 cm , Height : 12 ft
6.Barrier Mounting Requirements: Structure mounted barrier.
7.Drainage Requirements: Weep holes should be provided in panels, where necessary, to facilitate proper drainage. Drainage design should not create noise leaks.

Installation of Zn/Al noise barriers usually resulted with 30-35 sound reduction. Warranty period should be at least 10 years.

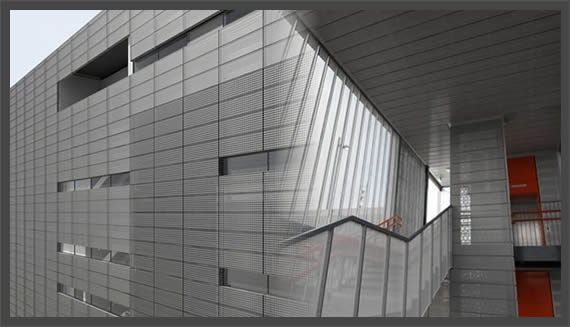

Architectural Perforated Aluminum Acoustic Panels
When used as acoustical panels for architectures or buildings, the perforated aluminum sheets are made to custom sizes square tiles punching into round or slotted uniform patterns. The punched metal sheets are used as interior ceiling panels and wall panels for decoration and sound insulation. Very popular high grade building materials for modern halls and buildings.

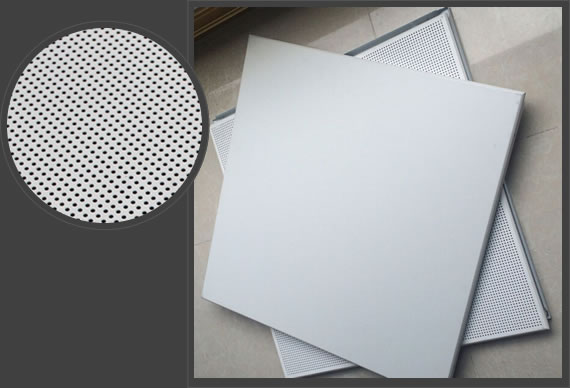

Perforated Aluminum Acoustical Panels for Architectural Ceiling Uses

Popular Type: White Aluminum Perforated 2x2 Acoustic Ceiling Tiles

Material: Aluminum Alloy Ceiling Tiles


Ceiling Tile Shape: Square

Function: Fireproof; Heat Insulation; Moisture-Proof; Mould-Proof; Sound-Absorbing; Waterproof

Feature: Decorative artistic ceiling panels;Integrated Ceilings; Made with Uniform perforated holes.

Auminium interior ceiling for sound acoustic absorber and mobile home wall paneling.

Suspended structure metal ceilings.

Metal Suspending Ceiling Tiles

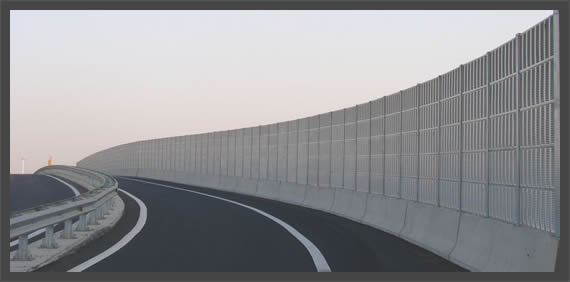

Fire Resistant Highway Acoustical Panels Sound Barrier

When used as sound barriers for highways and railways, the aluminum sheets are used together with forms, PC or various wrapping materials to form a wall of wind resisting and noise reduction. Aluminum acoustical panels are never rusting and can be used maintaining free.

Material: aluminum sheet.
Appearance: shutter type, perforated type.
Colors: Clear, lake blue, green, blue, opal, brown, silvery gray, red.

Other color can be ordered according to you request.
Transparent sheet: PC, PMMA.


Panel height: 0.5m ,1.0m, 3.0m.

Length: 2.0m,2.5m,3.0m,4.0m.

Thickness: 1.0-1.5mm.

Sound transmission loss ≥ 30 dB;
noise reduction coefficient ≥ 0.7;
fire resistance class E.



Aluminum acoustical sheet sound barrier is composed of alloy keel frame, perforated plate, built-in absorbent fabric or fiber, used as sound insulation and noise reduction system for High-speed Rail, highway, municipal construction, rail transportation.


Sound barrier H-post: 100x100x6x8mm, 125x125x6.5x9mm, 150x150x7x10mm, 175x175x7.5x11mm.
Sound barrier flange plate: 250x250x10, 300x300x10, 350x350x10, 400x400x10mm etc.


Perforated Plate Plus Fiber Barrier System

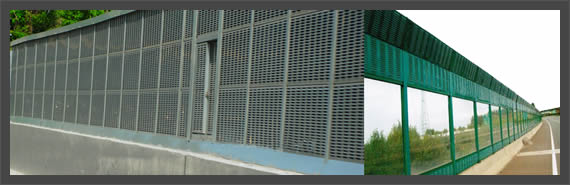

Acoustical Panels Made of Aluminum for Highway Fencing

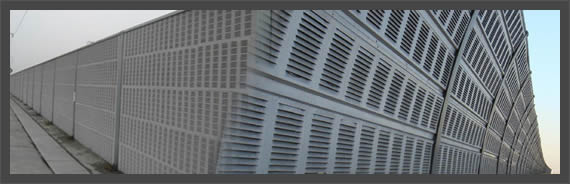

Perforated Aluminum Highway Barriers

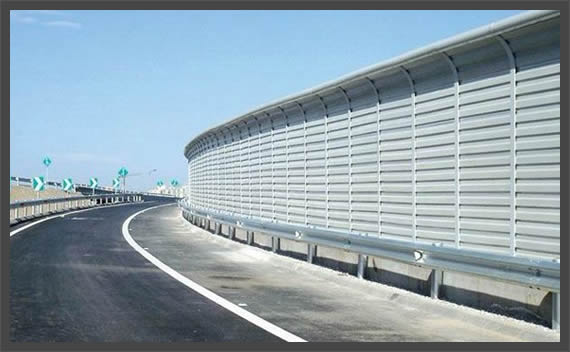

Aluminum Alloy Metal Sound Noise Barriers


According to your request, we will provide more technical parameters, product certification and other details. Welcome to contact us.
